- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Maximum recommended operating temperature 302°F (150°C)

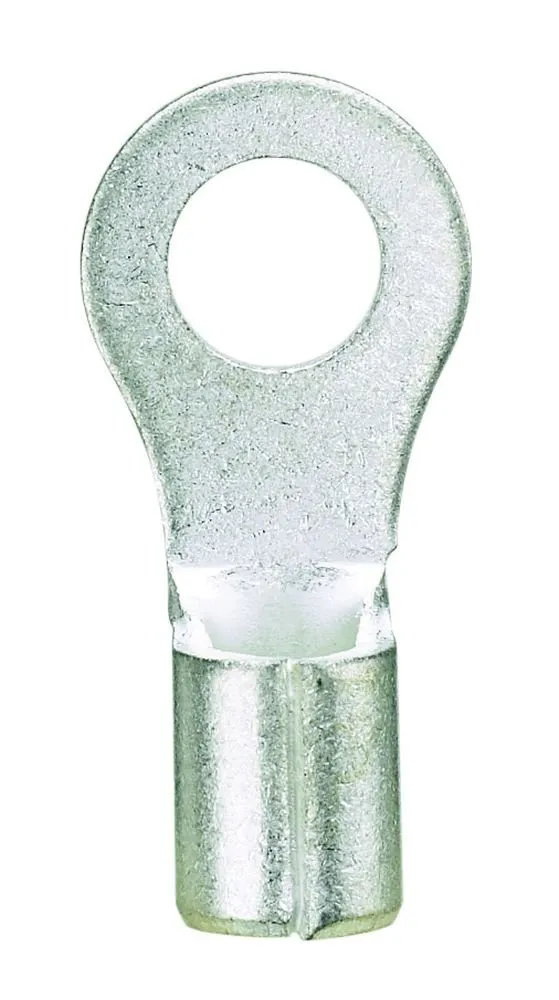

This Panduit P10-8R-L ring terminal is suitable for use with solid or stranded copper wire from #14 to #10 AWG (2.5 to 6 sq. mm) and #8 (M4) studs. It has a tin-plated copper body, a maximum voltage rating of 2,000V, and a maximum temperature rating of 302 degrees F (150 degrees C). This terminal has internal barrel serrations for secure conductor contact and a brazed seam for protection of the barrel from splitting during the crimping process. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substance regulations and is Underwriters Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance. This ring terminal is suitable for use with solid or stranded copper wire from American Wire Gauge (AWG) #14 to #10 (2.5 to 6 sq. mm) in industrial, automotive, and other high-vibration electrical applications.
SpecificationsConnector typeRing terminal, non-insulatedFor use with solid or stranded copper wire#14 to #10 AWG (2.5 to 6 sq. mm)Stud size#8 (M4)Compatible with Panduit crimping toolsCT-100A, CT-200, CT-600-A, CT-1570, CT-1701, CT-2500Dimensions*0.78 x 0.31 inches/19.8 x 7.9 mm (L x W)Center hole diameter0.17" (4.3 mm)Clearance0.31" (7.9 mm)Wire strip length9/32" (7.1 mm)Body materialTin-plated copperBody material thickness0.04" (1 mm)Maximum voltage rating2,000VMaximum temperature rating302 degrees F (150 degrees C)Standards metUL Listed, CSA certified, RoHS compliant*L is length, the horizontal distance from end to end; W is width, the horizontal distance from side to side.
Panduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.
- Product Dimensions : 1.9 x 1.9 x 3.6 inches; 4 ounces
- National Stock Number : 5940-01-382-7724
- Date First Available : January 25, 2013
- Manufacturer : Panduit
